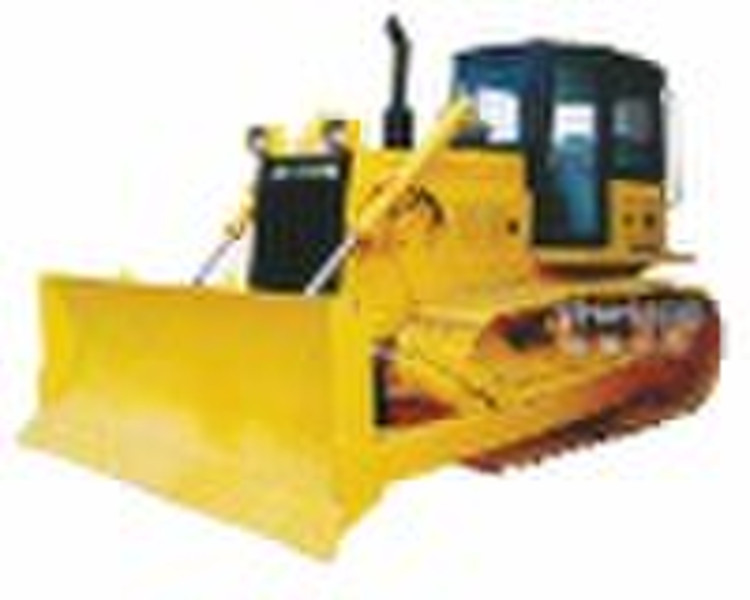

Bulldozer (SD6G)

SD6G bulldozer is developed on the basis of SD6D which is manufactured according to CAT' original drawing of D6D. It's features optimized overall arrangement, excellent visibility and easy operation. The semi-rigid suspended undercarriage, power shift transmissin, torque divider and other rugged, durable and reliable components deliver smooth, responsive power and lasting reliability. Main technical parameters: Dozer:straight tilt Operating weight:16200kg Max.drawbar pull:145KN Ground pressure:55.23kpa Track gauge:1880mm Min.ground clearance:445mm Blade capacity:4.5m3 Blade width:3297mm Max.digging depth:592mm Overall dimensions:5037*3270*3077mm Implement hydraulic system: Max.system pressure:15.5mpa Pump type:gear pump System output:178L/min Undercarriage system: Type:swing type of sprayed beam,suspended structure of equalizer bar Number of track rollers(each side):7 Number of carrier rollers(each side):2 Pitch:203mm Width of shoe:560mm Gear:3F/3R Engine:shangchai C6121ZG05 Rated revolution:1900r/min Rated power:131kw Max.torque:770/1400N.m/rpm Rated fuel consumption:215g/kwh Power transfer system: Torque converter:with torque divider combined smoothness with economy transmission:planetary, power shift, easy and fast shift steering clutch:hydraulically actuated, multiple-disc oil clutches,spring pressed,hydraulic separated
