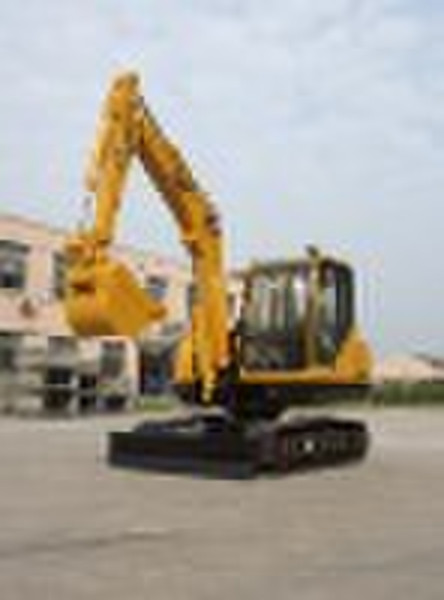

Excavator SW60E

NO.DESCRIPTIONSPECIFICATON1Main machine (1)Working weight 6100kg (2)Bucket capacity 0.22M3 (3)Track width 400mm (4)Transport dimension 5900*2660*2025mm (5)Overall dimensionLength of track on ground 2000mm Ground clearance of counter weight720mm Tail swing radius1650mm Total length5900mm Total height2660mm Total width2025mm Track gauge1600mm Min. ground clearance340mm Track width400mm Track height590mm Dozer2000*375mm (6)Working rangeMax. working radius6150mm Max. working radius on the ground6110mm Max. digging depth3850mm Max. digging height6040mm Max. dump height4250 mm Min. swing radius2310mm (7)Performance Ground pressure 37Kpa Swing speed 9.9r/min Travelling speed high/low4.3/2.3km/h Grade ability 35° Noise inside the cab ≤85db(A) Fuel tank 120L (5)EngineCompany YANMAR 4TNV94L-FSN Type4 cylinder, inline, turbocharged Rated horsepower39KW/2200rpm Bore-stroke94*110mm Displacement3.054L Min. fuel consumption≤235g/kw.h Max. torque and revolution206Nm/2400RPM (6)Main hydraulic pumpCompany NACHI Type PVD-3B-56P-18G5-4191A Rated pressure 21.6Mpa Max. delivery 160L/min Pump type plunger variable pump + gear pump Method of power adjustment constant output regulation (7)Swing motorCompany KOREA JEIL Type JMF-29-01-VBR-RK-19 Rated pressure 21.6Mpa Max. delivery 28.87cc/rev (8)Travel motorCompany KOREA JEIL Type JMV-44/22-02-VBC-RJ-45 Rated pressure 21.6Mpa Max. delivery 55L/min (9)The pressure of hydraulic control systemWorking part 21.6Mpa Traveling part 21.6Mpa Hydraulic oil tank 80L Hydraulic oil filter Double filter in the tank (10)Swing systemSwing speed 9.9RPM Type constant closed disc type brake with buffer function
