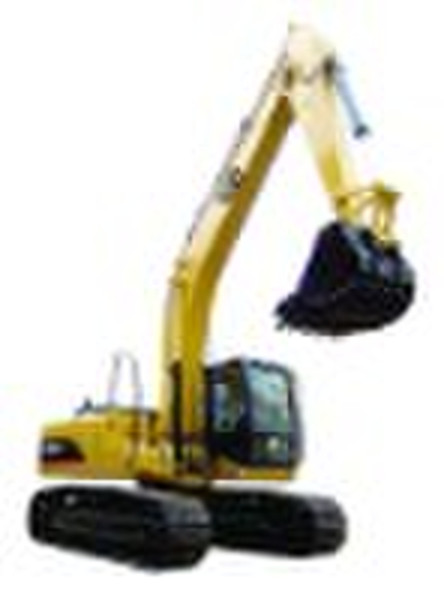

SW210E
Ken Lee
Contact person
Basic Information
NO.DESCRIPTIONSPECIFICATON1Main machine (1)Working weight 21470kg (2)Bucket capacity 0.90M3 (3)Track width 600mm/800mm (4)Transport dimension 9540*2980*3020(mm) (5)Overall dimensionLength of track on ground3650mm Ground clearance of counter weight1070mm Total length9540mm Total height3130mm Total width2980mm Track gauge2380mm Min. ground clearance490mm Track width600mm Track height945mm Tail swing radius2810mm (6)Working rangeMax. working radius 9910mm Max. digging depth 6638 mm Max. vertical digging depth 6057 mm Max. digging height 9489mm Max. dump height 6672mm Min. swing radius 3650mm (7)Performance Ground pressure44Kpa/35Kpa Swing speed12r/min Travelling speed high/low5.4/3.1km/h Grade ability35° Noise inside the cab≤80db(A) Fuel tank360L (5)Engine CompanyCummins 6BTA5.9-C Type6 cylinder, inline, turbocharged Rated horsepower112KW/1950rpm Bore-stroke102*120mm Displacement5.9L Min. fuel consumption≤228g/kw.h Max. torque / revolution597Nm/1600rpm
Delivery terms and packaging
Port: Shanghai
