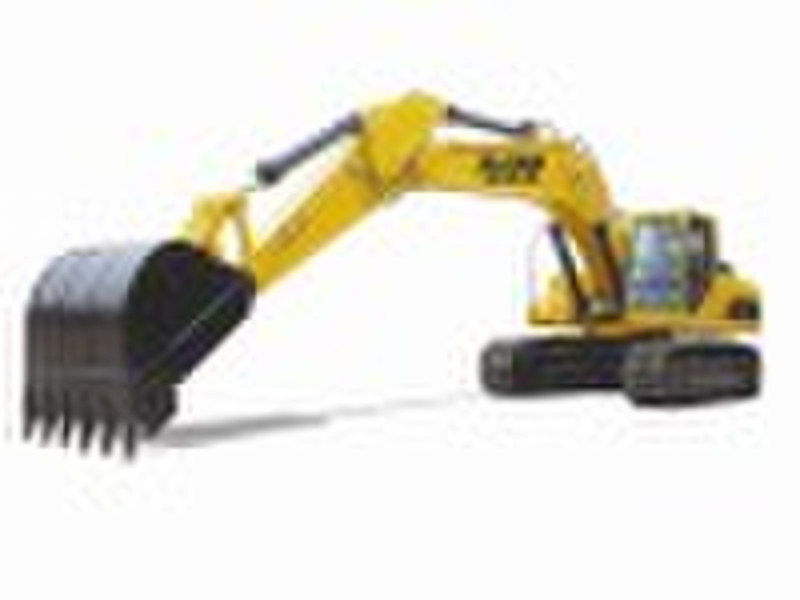

SW330E
Ken Lee
Contact person
Basic Information
NO.DESCRIPTIONSPECIFICATONMain machine (1)Working weight 33400kg (2)Bucket capacity 1.45M3 (3)Track width 600mm (4)Transport dimension 11250*3190*3430(mm) (5)Overall dimensionLength of track on ground3730mm Ground clearance of counter weight1180mm Tail swing radius3430mm Total length11250mm Total height3430mm Total width3190mm Track gauge2590mm Min. ground clearance540mm Track width600mm Track height1040mm (6)Working rangeMax. working radius11220mm Max. digging depth7490mm Max. vertical digging depth6520mm Max. digging height 10390mm Max. dumping height 7320mm Min. swing radius4295mm (7)PerformanceGround pressure68.5Kpa Swing speed11r/min Travelling speed high/low4.5/3.1km/h Grade ability35° Noise inside the cab≤80db(A) Fuel tank545L (5)EngineCompanyCummins C8.3(6CTAA) Type6 cylinder, inline, turbocharged Rated horsepower168KW/2000rpm Bore-stroke114*134.9mm Displacement8.29L Min. fuel consumption≤228g/kw.h Max. torque /revolution975Nm/1400rpm (6)Main hydraulic pumpCompanyKAWASAKI Type K3V140DT-1CMR-9N2P Rated pressure 34.3Mpa Max. delivery 271*2L/min Pump type 2*variable flow axial piston pump+1 gear pump Method of power adjustment Gross power adjustment + variable power + negative flow control
Delivery terms and packaging
Port: Shanghai
Payment term
Letter of credit
Telegraphic transfer
-
Payment Methods
We accept:
