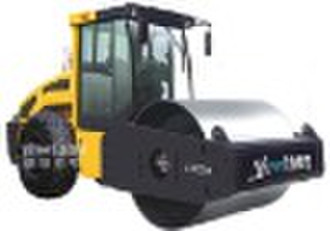

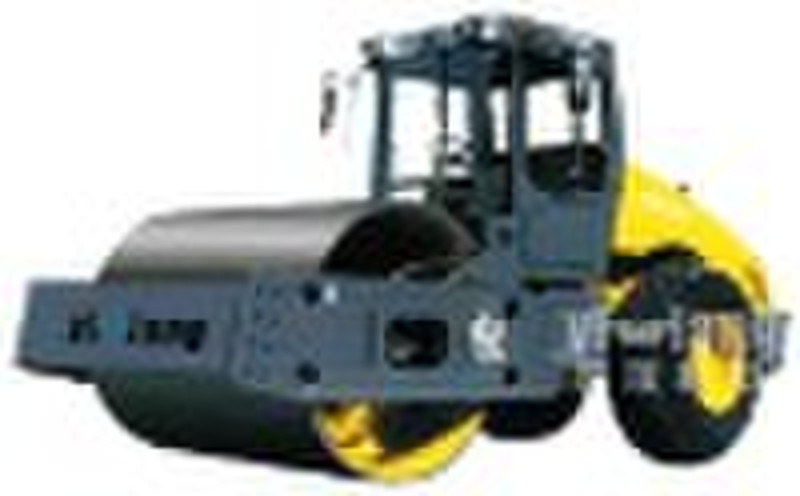

Vibratory Roller (LSS216A/LSS216PA)

Item: LSS216A/LSS216PA Description: Main features: 1. Water cooled & turbo-charged engines suitable for work in the area with high elevation. 2. Mechanical transmission and rear-axle driving guarantee the reliability of the transmission system. 3. Designed in the stream -line shape, the engine hood can be turned up to 80° , convenient for maintenance and repair. Model: LSS216A Operating mass(with cab/without cab) Kg: 16000 Front axle load Kg: 8000 Rear axle load Kg: 8000 Static linear load N/cm: 370 Vibration amplitude(high/low) mm: 1. 75/0. 85 Vibration frequency(high/low) Hz: 33/30 Centrifugal force(high/low) kN: 310/180 Travel speeds km/h 1st gear: 2 2nd gear: 4 3rd gear: 10. 5 4th gear Gradeability: 30% Steering angle: 36° Turning radius(inside/ outside) mm: 4870 / 7000 Vertical oscillation: 10° Tire size: 23. 1-26 Overall length mm: 5820 Overall width mm: 2280 Overall height(with cab/without cab) mm: 3000/2265 Drum width mm: 2130 Drum diameter mm: 1600 Drum shell thickness mm: 30 Wheel base mm: 3106 Min. Ground distance mm: 432 Engine model: D6114 Engine power: 132 Engine speed r/min: 2000 Fuel tank capacity L: 180 Electrical voltage V: 24 Hydraulic tank capacity L: 200
